A Constant Wattage Heating Cable carries electricity through a fixed-resistance wire that heats up along its full length. This design of the cable is such that it would produce an equal heat output at any voltage that is applied. The cable is wound around the pipes or placed under the floors such that it keeps the surfaces right above the set temperatures. Since it is uniform in its warmth, it is best for the prevention of freezes and for keeping the fluid's flow regular. As and when needed, the controllers or thermostats would switch off and on the power, hence the energy would run only when the loss of heat is demanded.

How Heat Generation Works

Electric current flows through the cable’s metal core, and electrical energy becomes heat energy. Since the core’s resistance stays fixed, the heat output remains steady. A thermostat reads surface temperature through a sensor and signals the cable to turn on or off. At the proper level, power is cut off. When the temperature dips below the set point, the cable powers up again. This simple cycle keeps heat levels consistent without user intervention.

Main Components of the Cable

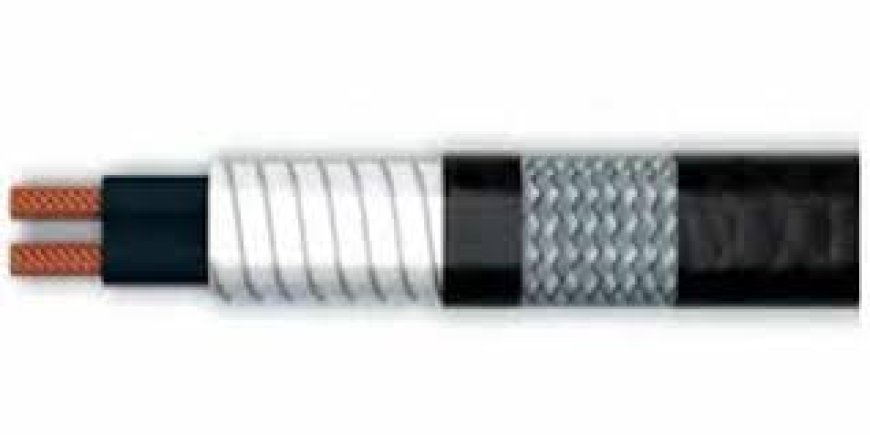

Every Constant Wattage Heating Cable features a heating conductor, multiple insulation layers, a metallic shield, and an outer jacket. The conductor resists electric flow and creates heat. Insulation layers trap heat inside and prevent shocks. A metallic braid or foil shield blocks interference and creates a safe ground path. The tough outer jacket withstands chemicals, UV rays, and rough handling in desert environments. Each part works as one unit to deliver long-term performance.

Factors That Guide Cable Design

Engineers consider several key factors when designing a heating cable. Ambient temperature extremes shape choices in insulation and jacketing. Oil or chemical exposure dictates more resistant outer layers. Target surface temperature sets the watt density in watts per meter. Local voltage and phase requirements define conductor size. Cable length impacts voltage drop and overall power draw. Balancing these factors ensures reliable heat output and long cable life.

Power Density and Heat Loss

Power density measures how much heat a cable delivers per meter. Available ratings range from 5 W/m up to 50 W/m. Lower density suits small pipes or floors with minor heat loss. Higher density handles wide-diameter pipes or very cold conditions. Heat loss calculations use standard charts or simple software. Matching the cable’s power output to the calculated loss prevents overheat or underheat. A small safety margin keeps the system reliable under sudden weather changes.

Selecting the Right Cable

Calculating heat loss starts by measuring pipe diameter or floor area and checking ambient temperatures. Heat loss charts reveal the wattage needed per meter. Next, choose a cable with slightly higher watt density for safety. Confirm the local voltage supply and phase to avoid mismatches. Consider site factors such as sand abrasion or chemical spills. Picking the right cable cuts energy waste and keeps the system operating smoothly.

Surface Preparation for Installation

Proper surface preparation prevents future issues. Surfaces must stay clean, dry, and free of loose rust or paint. A smooth substrate allows tight cable contact. Sand or dust on pipes can create gaps that lower heat transfer. Wiping surfaces with a clean cloth before laying cable pays off. Adhering to these steps simplifies installation and reduces cold spots.

Securing the Cable Correctly

Clips, ties, or metal tape hold the cable in place at regular intervals. Each attachment point must stay snug without pinching the cable. Overlapping runs are dangerous because they form hot spots. Crossing cables can cause uneven heating and early failure. Uniform spacing ensures consistent heat. Following the manufacturer's guidelines for clip spacing and cable layout provides a safe and efficient setup.

Insulating Above the Cable

Insulation traps heat and reduces energy loss. Mineral wool, foam boards, or closed-cell foam all work well. Thicker insulation cuts heat loss further but adds weight. A layer of just 50 mm of foam can reduce heat escape by up to 30 per cent. Covering the cable fully avoids cold bridges where heat can leak. Ensuring good insulation directly boosts energy savings over the cable’s life.

Reliable Temperature Control

Thermostats and controllers play a vital role in system efficiency. A sensor probe sits near the cable and delivers a temperature reading. When readings drop below the set point, power flows through the cable. At the target mark, the controller cuts power. Fine-tuning set points according to weather patterns results in better comfort and lower bills. Alarm features on some controllers alert technicians if the temperature strays too far from safe values.

Key Uses of Constant Wattage Heating Cable

• Winter protection for oil and gas pipelines that face desert-night chills

• Temperature upkeep for process water or chemical pipes at industrial sites

• Underfloor heating in homes, offices, and commercial spaces for comfort

• Roof and gutter heat tracing to keep snow and ice from blocking water flow

• Tank tracing to keep viscous fluids like bitumen or syrup in a fluid form

These applications showcase the cable’s versatility. Adapting heat output to each use case guarantees protection and consistent flow across many industries.

Benefits of Constant Wattage Heating Cable

• Observes uniform heat delivery along pipes, floors, or roofs without cold spots

• Provides precise temperature control, avoiding major fluctuations

• Arrives in custom lengths pre-tested at the factory for quick setup

• Stays durable under harsh sun and sand in desert regions like the UAE

• Saves energy by activating only when environmental heat loss exceeds set values

This results in not only higher uptime with the systems but also lower costs of maintaining them and energy usage. Such savings align with the push of the UAE to have energy efficiency and sustainability.

Safety Checks and Ongoing Care

Normal checks should discover harm before it turns into a breakdown. Sight tests must show any cut, crack, or loose fitting in the cable jacket. Checking insulation resistance once a year with a test meter will find secret breakdowns. If the system trips, then the technicians should follow the emergency shutdown procedures. Having the spare parts and repair kits on site will help to speed up the repairs.

Common Mistakes to Avoid

Ignoring surface prep can lead to cold spots that freeze pipes. Choosing a cable with too low a watt density forces continuous operation, wasting energy. Overlapping cable runs can create hot spots that burn insulation. Skipping insulation installation increases heat loss and drives power bills up. Failing to calibrate controllers leads to inconsistent temperature control. Spotting these errors early ensures reliable operation and reduces costly service calls.

Training and Documentation

Technicians must learn correct installation and maintenance practices. Structured training sessions cover cable layout, fastening methods, and insulation use. Clear manuals with diagrams help field crews follow steps accurately. Updating documents after any design change keeps everyone on the same page.

Local Regulations and Standards

Compliance with the rules of the Dubai Electricity and Water Authority remains in place for all power connections. International rules, for example, IEC 6276, which applies to heating cables and their accessories. All these will come to guarantee the fact that safety is involved, reliability, and warranty coverage. An inspection that should be carried out by certified electricians will prove whether the installation is proper. This will avoid fines, work stoppage, and liability issues.

Energy Efficiency Strategies

Optimising cable usage starts with precise heat loss calculations. Oversized cables draw more power than needed, while undersized cables run nonstop. Matching cable watt density to actual loss minimises waste. Proper insulation adds another layer of savings by cutting heat escape. Incorporating setback controls that lower set points during idle periods trims energy use further. Over a cable’s 20-year lifespan, these strategies repay installation costs several times over.

Weather-Related Challenges

Sandstorms may wear away the cable jackets, thereby exposing the inner layers over a long period. Plastics are broken down by strong UV rays, so the choice of UV-stable jackets is key. The high daytime temperatures make the 50 °C or more ambient temperature, placing stress on the cable insulation and terminations. The low nighttime temperatures make the pipes come very close to freezing. The junction boxes should have UV resistance, mechanical strength, as well as proper sealing to protect the system from such weather extremes.

Advances in Technology

New control units use wireless sensors that link to cloud platforms for real-time monitoring. Alerts trigger on mobile devices when temperatures stray beyond safe limits. Self-adjusting systems vary heat output according to live weather data. Next-generation jackets resist temperature up to 250 °C and harsh chemicals. Future cables might adapt watt density under load, creating smarter, more efficient heat tracing solutions.

Maintenance Scheduling

Setting fixed inspection intervals keeps the system healthy. A quarterly visual check catches obvious damage. Annual electrical tests verify insulation resistance and conductor integrity. Seasonal reviews before winter make sure controllers function and sensor probes remain accurate. Recording each check in a shared log helps track component life spans. Proactive maintenance prevents costly shutdowns and extends cable service life.
